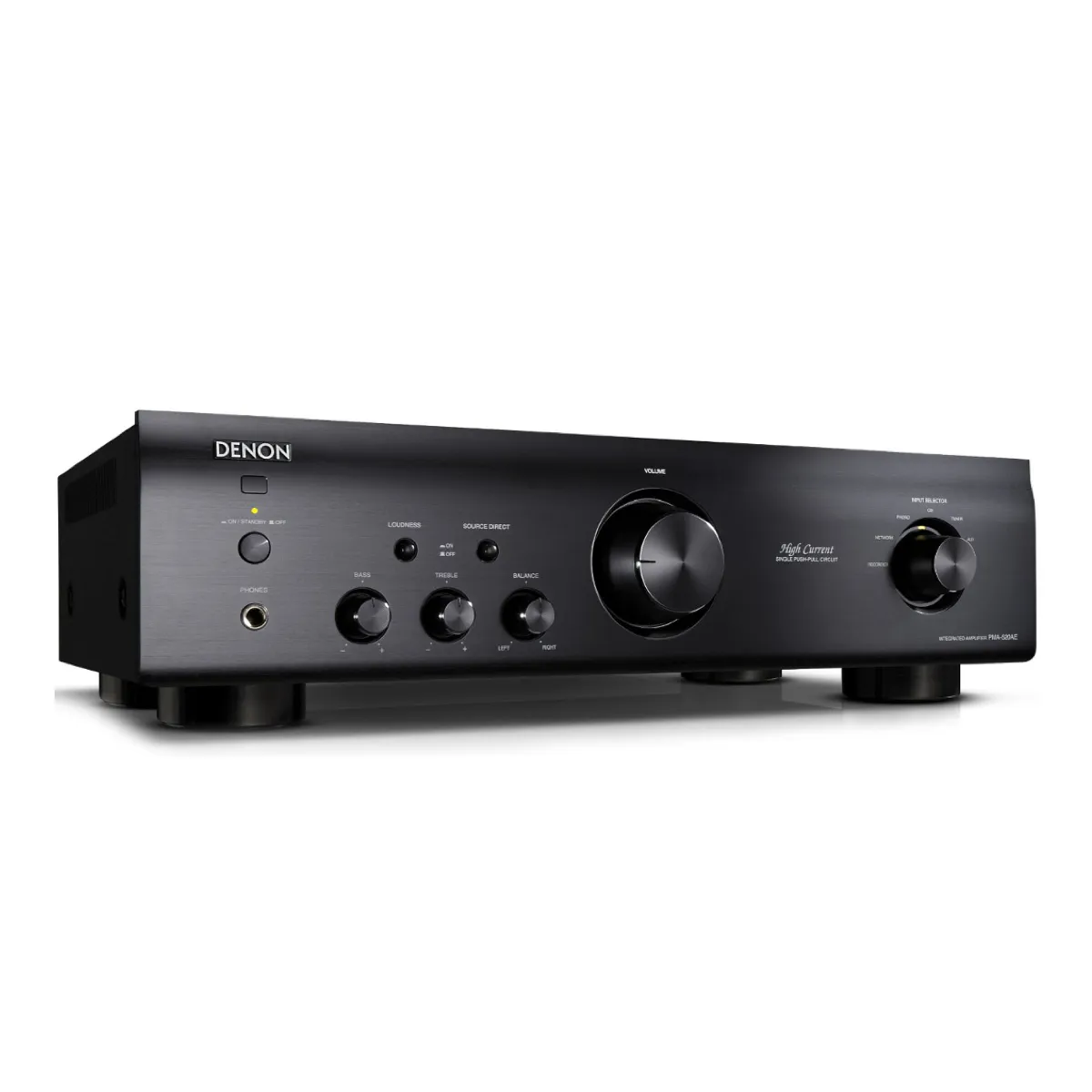

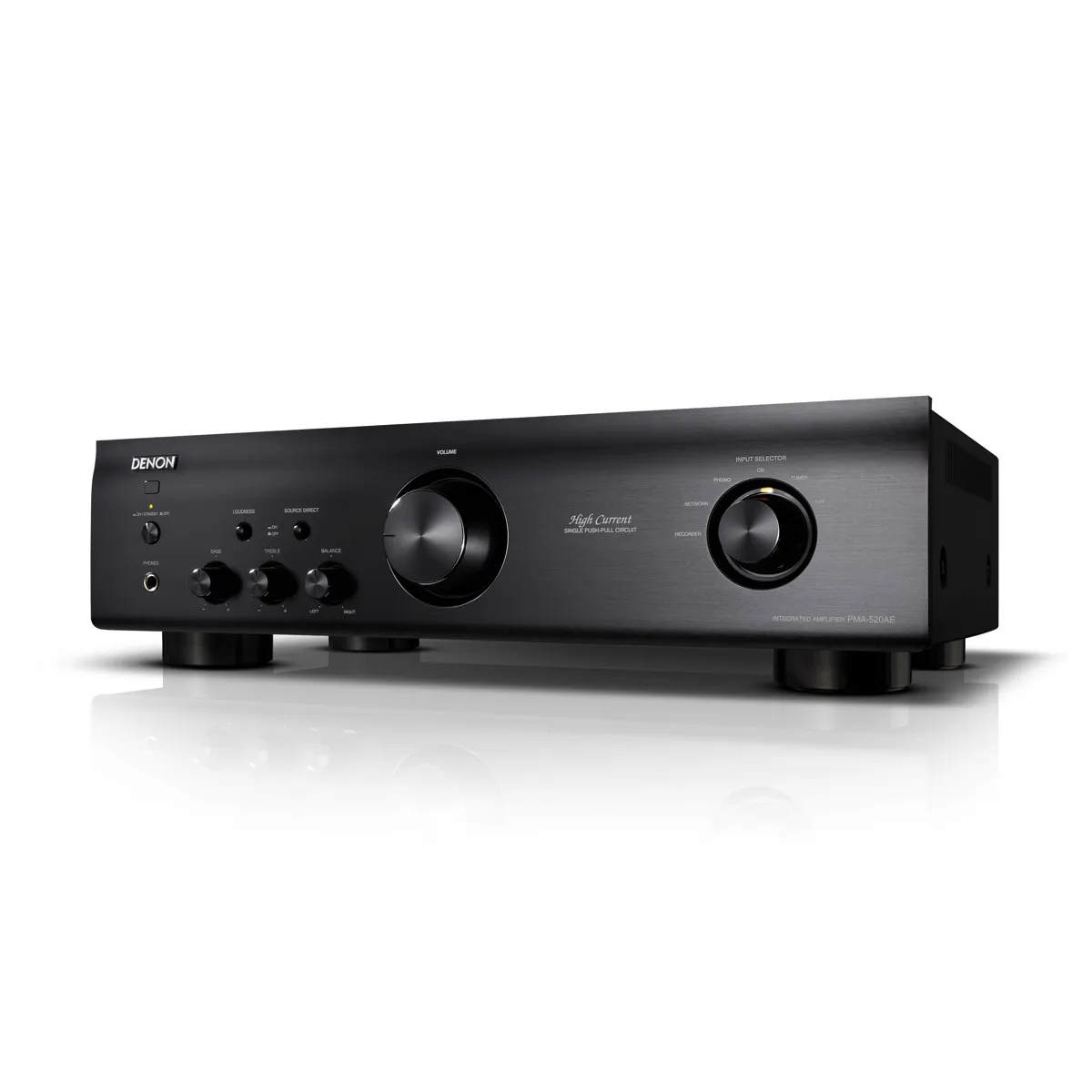

Denon PMA-520AE integrated amplifier features a High-Current Single-Push-Pull circuitry to achieve both strength and detail in music playback, which is Denon's focus for its pure audio amplifiers
Warranty:
1-year manufacturer's warranty
Features:
- Improved sound quality

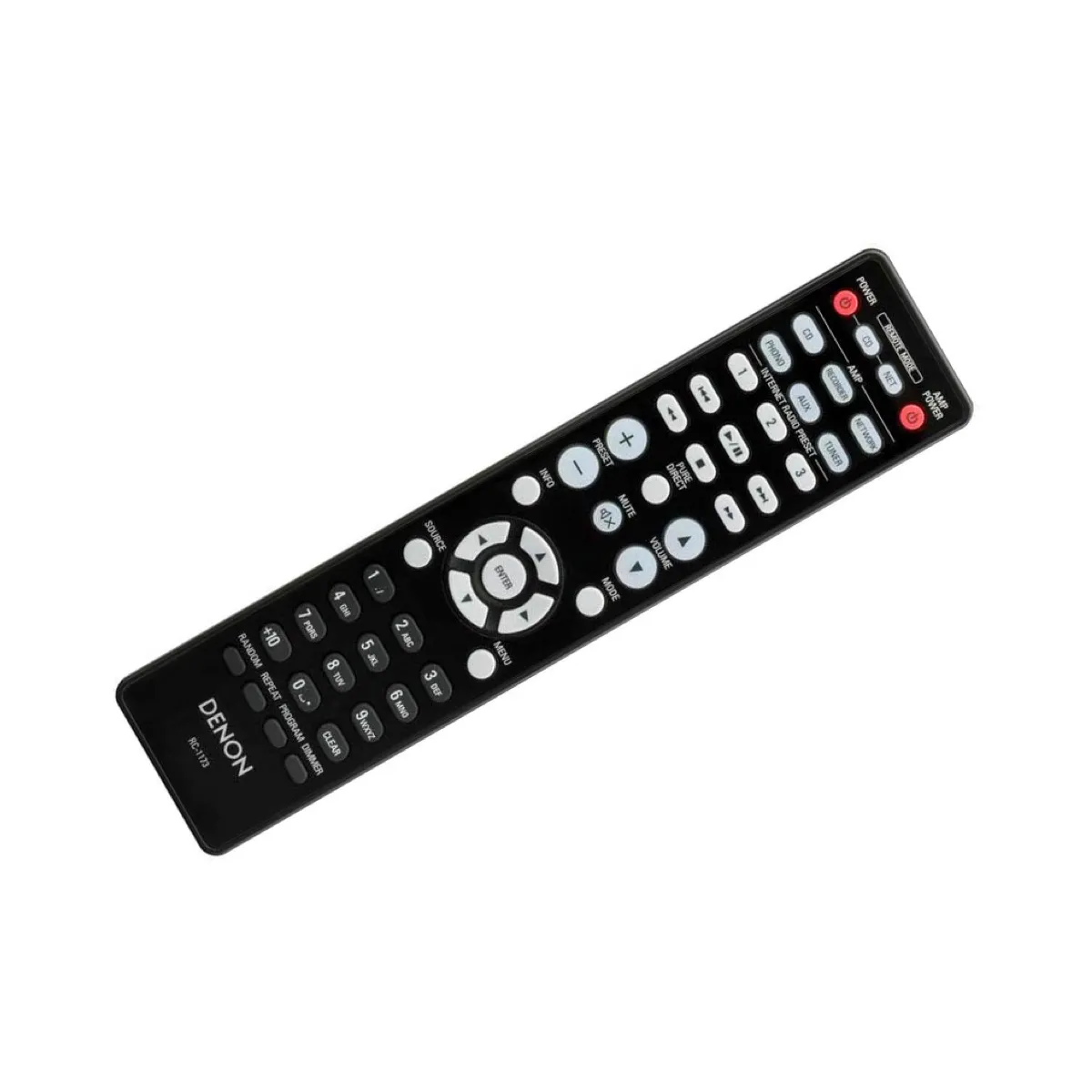

- Newly-designed system remote control
- ECO friendly with low power consumption in stand by and auto power off
- New higher quality speaker terminals
Video Review:
State-of-the-art Denon Solutions for Maximizing Content Quality
-
70 W x 2 ch (4 ohms)
-
High Current (HC) Single-Push-Pull Circuit
-
Wide dynamic range, supporting high-grade audio sources
-
Main transformer with separate power supplies
-
Micro-processor stop mode
-
Vibration-resistant design with Direct Mechanical Ground Construction
-
European sound-tuned
-
Phono Equalizer Amp (MM)
-

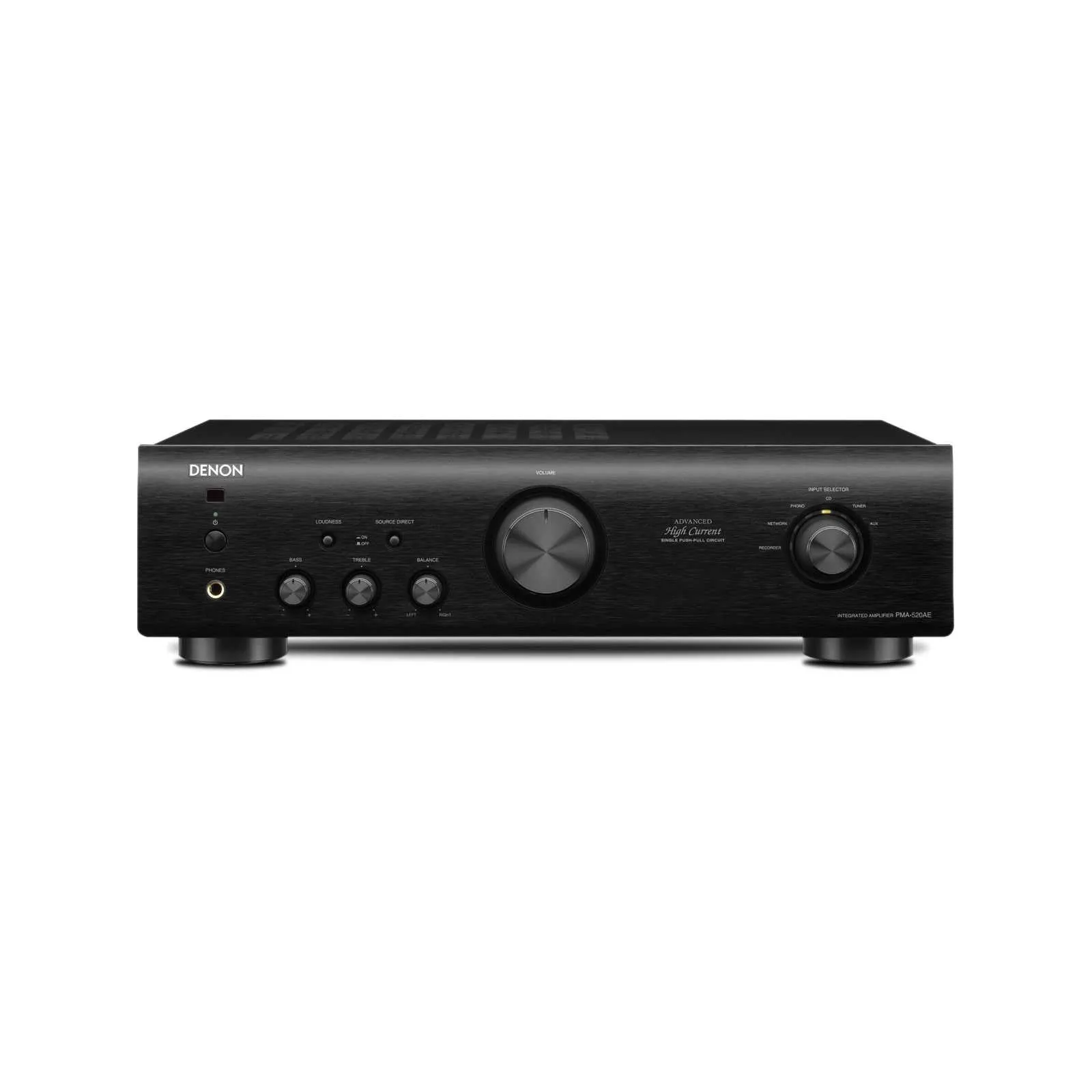

Aluminum front panel
Ease-of-use
- ECO friendly with low power consumption in stand by and auto power off
- Remote also controls Denon CD players and network players
- Front panel layout, designed for ease of use
Technical Specifications:
|
Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%) |
45 W |
|
Output power 4 Ohm (1 kHz, T.H.D. 0.7%) |
70 W |
|
Total Harmonic Distortion |
0.02% |
|
Input Sensitivity: MM |
2.5 mV / 47 Kohm |
|
Signal to Noise Ratio: MM/MC |
84 dB |
|
Input Sensitivity: High level |
110 mV / 30 Kohms |
|
Signal to Noise Ratio: High level |
105dB |
|
Treble Control |
± 8 dB at 10 kHz |
|
Bass Control |
± 8 dB at 100 Hz |
