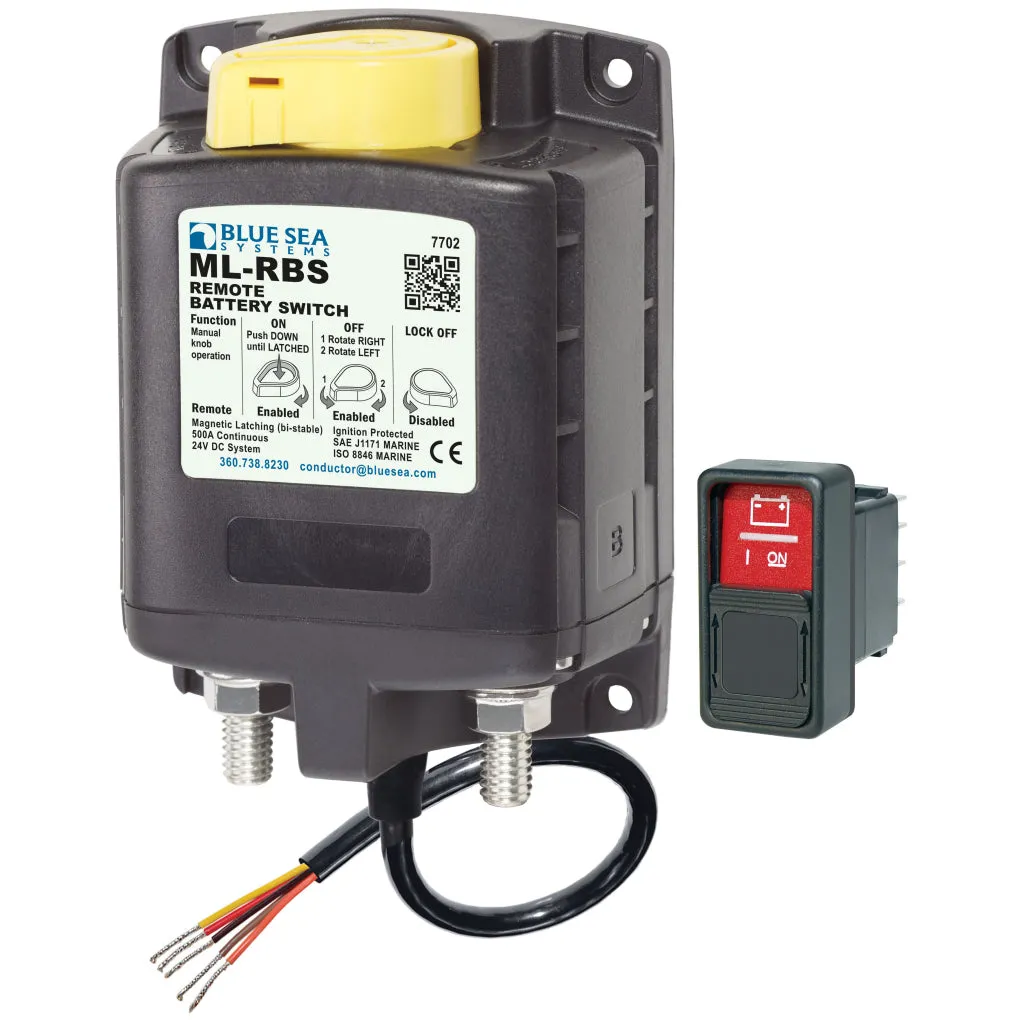

Item# 7702

Features:

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing.
• LED output to remotely indicate switch state - requires optional LED.
• 3 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance.
• 7 8" (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification.
• Silver alloy contacts provide high reliability for switching live loads.

Specifications:

• Control Circuit Connection: Tinned Wire
• Nominal Voltage:24V DC
• Manual Control:Yes
• Coil Function: Bi-Stable
• Mounting:10
• Amperage Operating Current:0mA
• Amperage Operating Current when changing state:<4A (40 ms)
• Terminal Stud Torque:140 in-lb (15.82 Nm)
• Control Circuit Voltage:18-32V DC
• Continuous Rating: 500A
• Intermittent Rating:700A (5 min)
• Cranking Rating 30 sec: 1450A DC
• Minimum Operating Temperature:-10° C
• Maximum Operating Temperature: 60° C
• Cable Size to Meet Ratings:2x (4/0)
• Live Current Switching:300A 12V DC
• Master Control Switch Capability:No
• Mechanical Endurance:100,000 Cycles
• Terminal Ring Diameter Clearance:1.18in (29.97 mm)
• Terminal Stud Length:0.875in (22.23 mm)
• Terminal Stud Size:3/8" - 16 (M10)
• Weight:2.09lb (0.95 kg)
