Product Details
＋

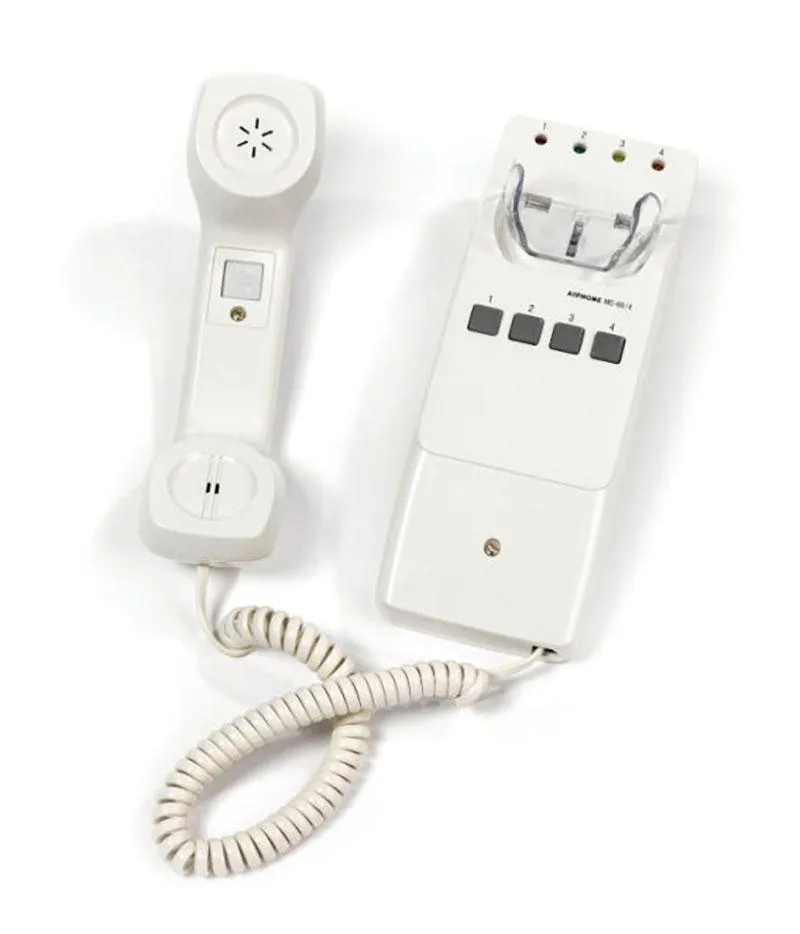

Aiphone MC-60/4A Wall Mount Market-Com Master Station, 4 Lines
Aiphone Intercom MC-60/4A A handset style paging/communication system for use in marketplace applications. Wall Mount Market-Com Master Station, 4 Lines
Select 4 talk channels with in-use LEDs. Crosstalk reduction circuit. Reinforced modular coil cord. Optional 12" checks and pedestal (MC-S12)
MC MarketCom System
A handset-style paging/communication system for use in marketplace applications.
Maximum 60-station paging and communication system with selective 4 talk channels with in-use LED.
- Power Source: 24V DC - Use PS-2420UL
- Communication: Pick-up and depress channel selector 1~4 and page with PAGE button Called party picks up and presses lit LED channel button
- Wiring: 7 wires in loop, non-twisted, low capacitance (PE insulation)
- Distance: MC-A/A to farthest MC-60/4A or MC-60/4B* on the block: 1,700(22AWG) 4,000(18AWG) *Total cumulative wiring distance between MC-60/4A or Total cumulative wiring distance between MC-60/4A or MC-60/4B: 5,000(22AWG)
- Wire Type: Aiphone #852207
